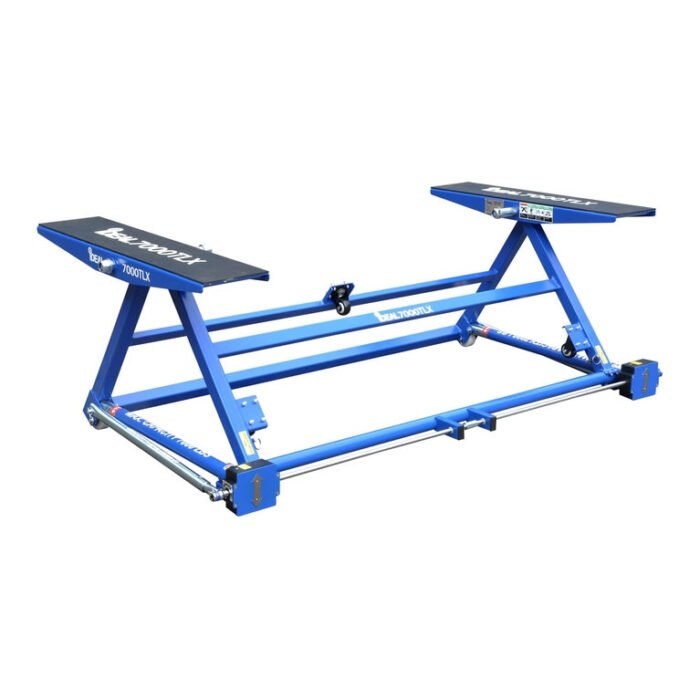

iDEAL Portable Auto Tilt Lift TLX – 7,000 lbs. Capacity
€884.65
| Weight | 0.0 lbs |
|---|---|
| title |
Default Title |
Description
Features
- Industry leading 7,000 lb. Capacity!
- Handheld electric drill operation, no hydraulics
- Low-profile, lightweight, portable & storable
- Exclusive dual independent safety lock bars & pins
- Allow for full operation from either side of lift
- Twin dual-action precision gear drives
- Adjustable width platforms
- Easy to use & maintain
- Max lift height: 23-1/2
- Lift dimensions: 51-3/4 x 64-3/8 x 4-1/2
- Durable powder-coat paint finish
- Weather resistant for indoor or outdoor use
- 1 year limited warranty
- Standard with jack stand, platform risers, drill-drive
- Adapters, wall mount brackets & manual handle w/ socket adapter
- (power drill not included)
Specifications
| Lift Capacity | 7,000 lbs. |
| Overall Length | 51-3/4″ |
| Overall Width | 64-3/8″ |
| Min. Height | 4-1/2″ |
| Max Lift Height | 22-1/2″-23-1/2″ w/ Risers |
| *Lift Speed | 30 to 40 Sec |
| Lift Weight | 111 lbs. |
| Platform Length & Width | 31-1/2″ x 7-1/4″ |
| Outside/ Platforms Widths | 59-1/4″ to 63-3/4″ |
| Inside/ Platforms Widths | 44-1/2″ to 49-1/4″ |
| **Power (Corded Drill) | 10 Amp – 120 VAC 1/2″ |
| Ship Weight | 214 lbs |
Benefits
- Frees up valuable space in your garage, shop, or work area.
- Adds inspection & service capabilities for repair shops.
- Allows for comfortable work height & undercarriage access.
- Safely lifts & tilts unibody vehicles with 48 to 61 frame rail widths.
Uses
- Inspections & oil changes
- Brake & wheel service jobs
- Exhaust & transmission service
- Paint spray booths
- Autobody repairs
- Auto detailing & wrapping
- Showcase chassis at trade shows
- Unique car dealer vehicle display
Manual
iDEAL Portable Auto Tilt Lift TLX – 7,000 lbs. Capacity Manual
