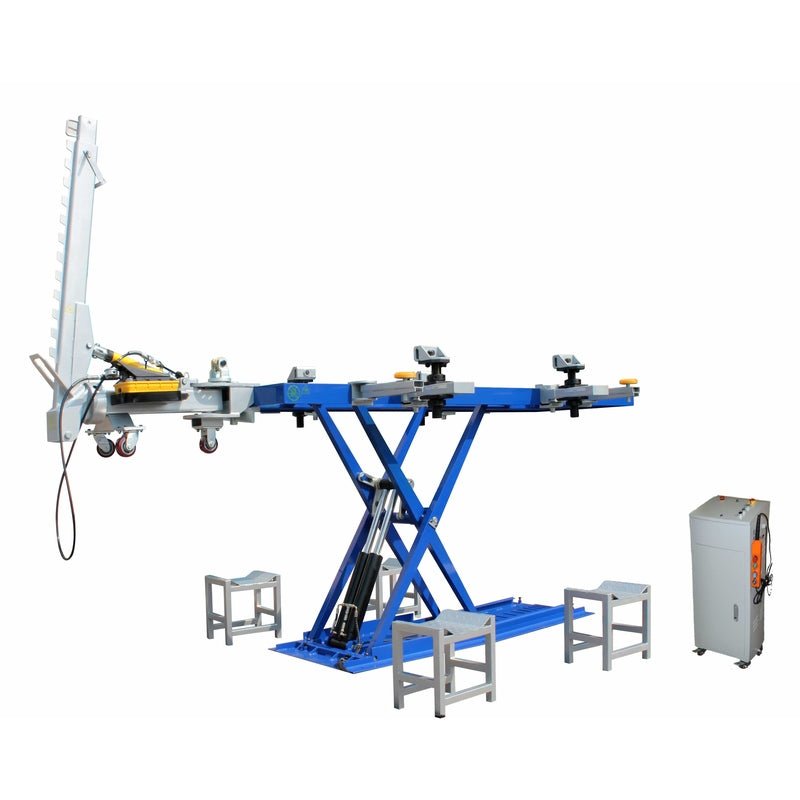

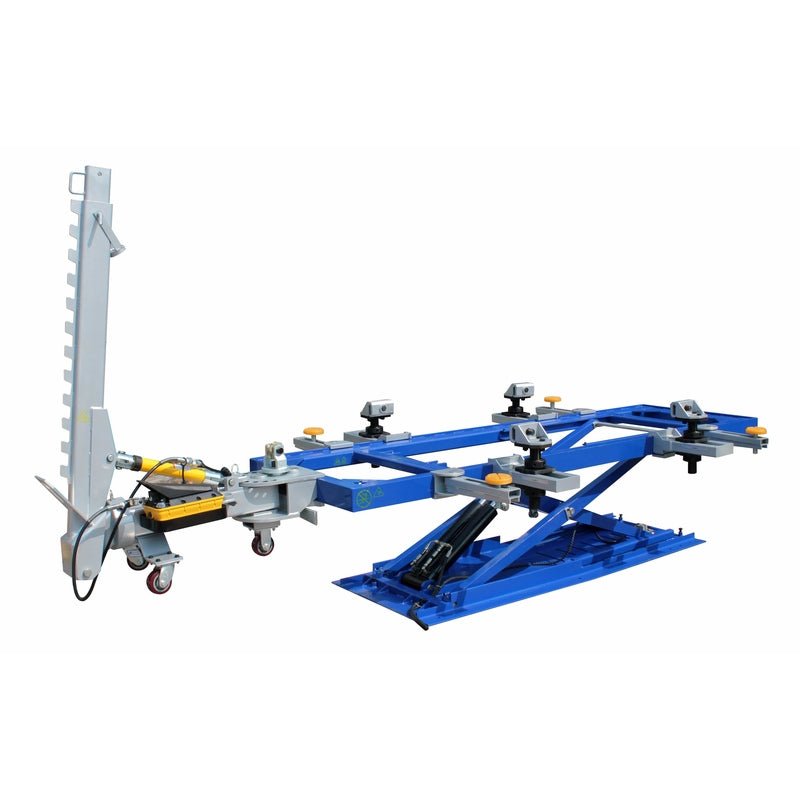

iDEAL FR-55 Frame Rack, Scissor, 1P10T-5.5K (Includes 1 each – Chain with Universal Hook)
€8,288.15
| Weight | 0.0 lbs |
|---|---|
| title |
Default Title |
Description
iDEAL Fr-55 Scissor Frame Rack 1P10T-5.5K

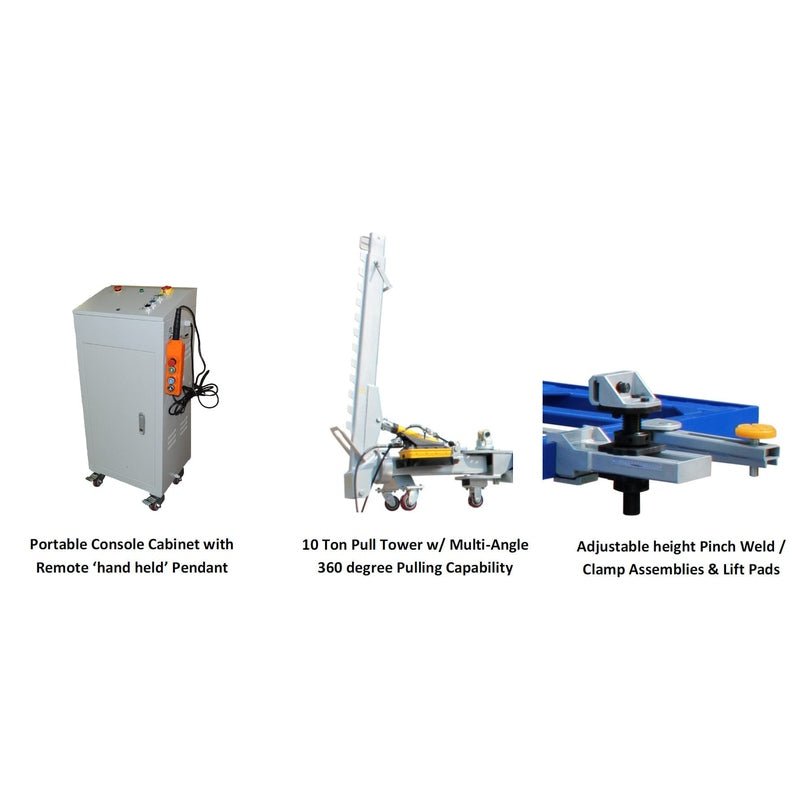

Features
- Handles Both Full Frame And Uni-Body Vehicles
- Scissor Style Operation With5,500Lbs. Capacity
- Universal Anchoring System With Adjustable Height Pinch Weld Assemblies
- One-10 ??? Pulling Tower With Down Pull Roller
- Multi Angle 360 Degree Pulling
- Quick Disconnect Hydraulic Fittings
- One-10′ Pulling Chain With Hook
- High Quality Air/Hydraulic Pump With Pressure Gauge
- Four Universal Wheel Stands
- Powder Coat Finish

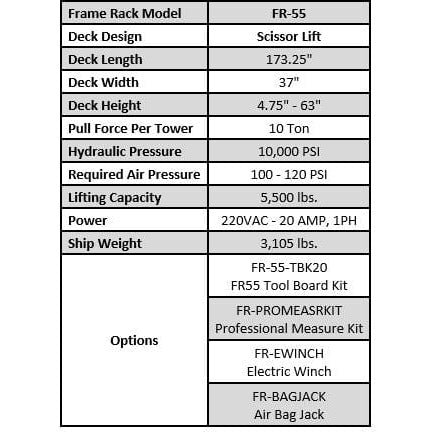

Specifications
| Frame Rack Model | FR-55 |
| Deck Design | Scissor Lift |
| Deck Length | 173.25″ |
| Deck Width | 37″ |
| Deck Height | 4.75″ 63″ |
| Pull Force Per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100 120 PSI |
| Lifting Capacity | 5,500 lbs |
| Power | 220VAC 20 AMP, 1PH |
| Ship Weight | 3,105 lbs |
