Atlas TC289DAA Tire Changer + WB11 Wheel Balancer Combo Package
€3,275.48
| Weight | 0.0 lbs |
|---|---|
| title |
Default Title |
Description
Description

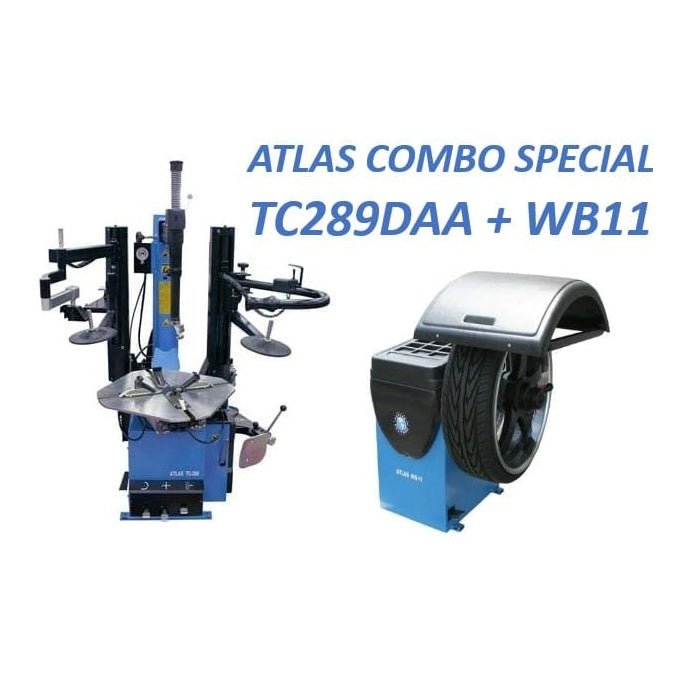

This combination package includes the Atlas® TC289 rim-clamp swing arm tire changer with Dual Assist Arms & the Atlas® WB11 computerized spin balancer. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.
Features

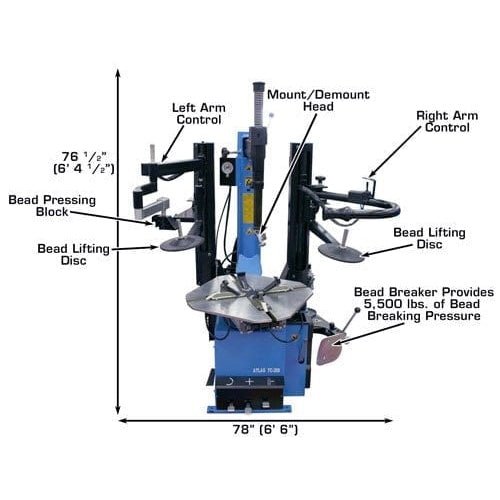

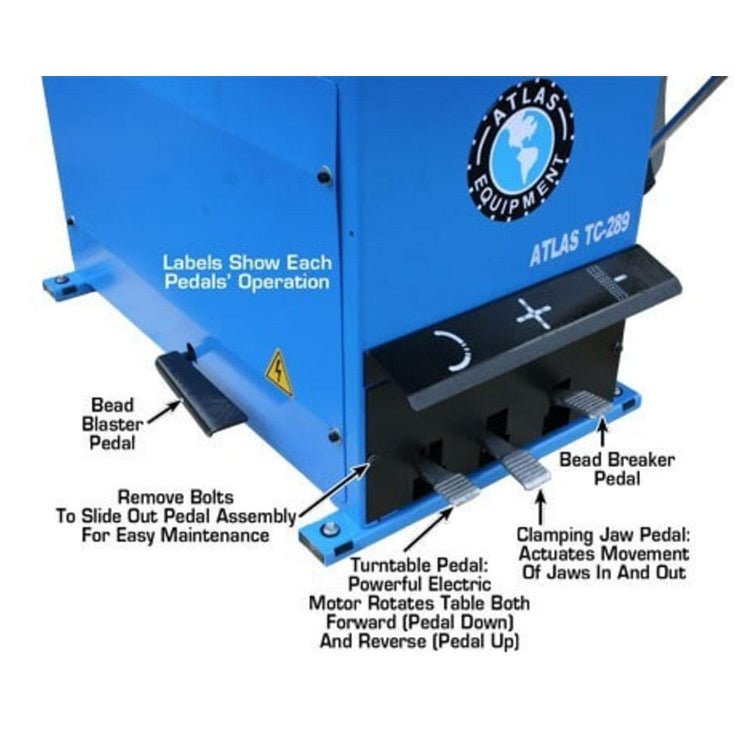

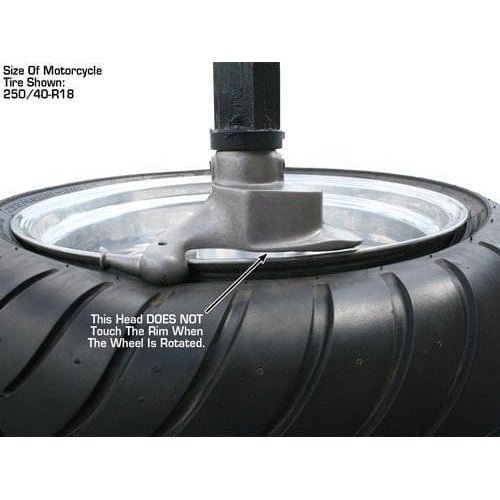

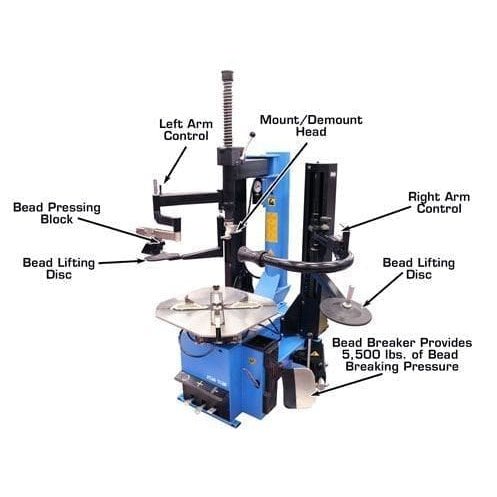

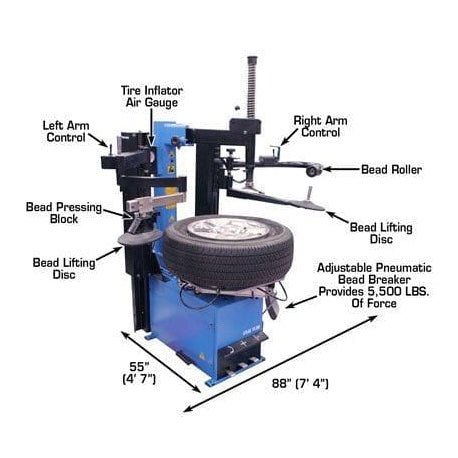

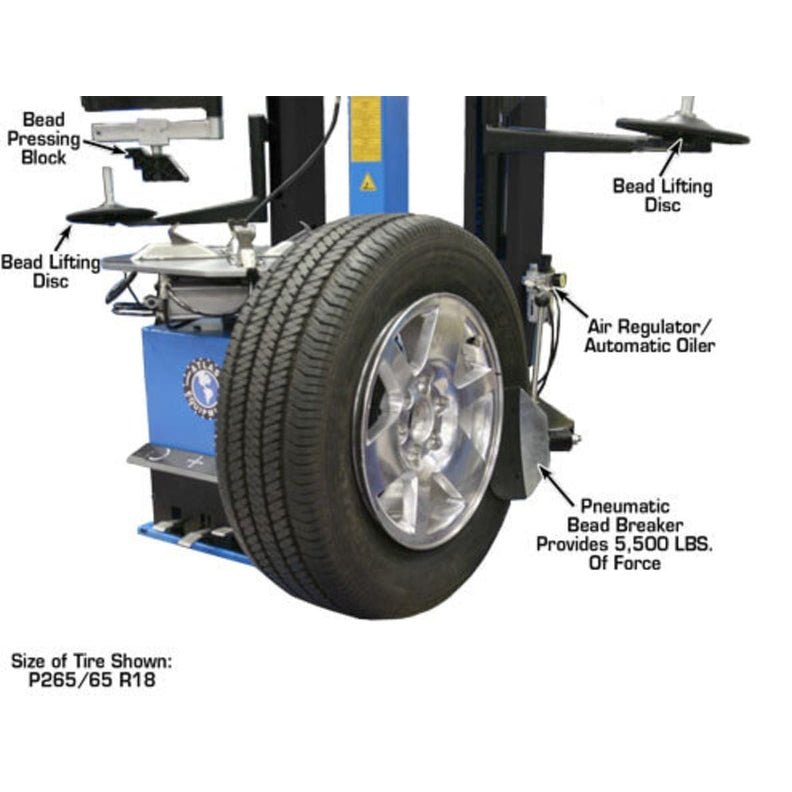

TC289DAA Tire Changer
- Rim Clamp/Swing Arm Tire Changer

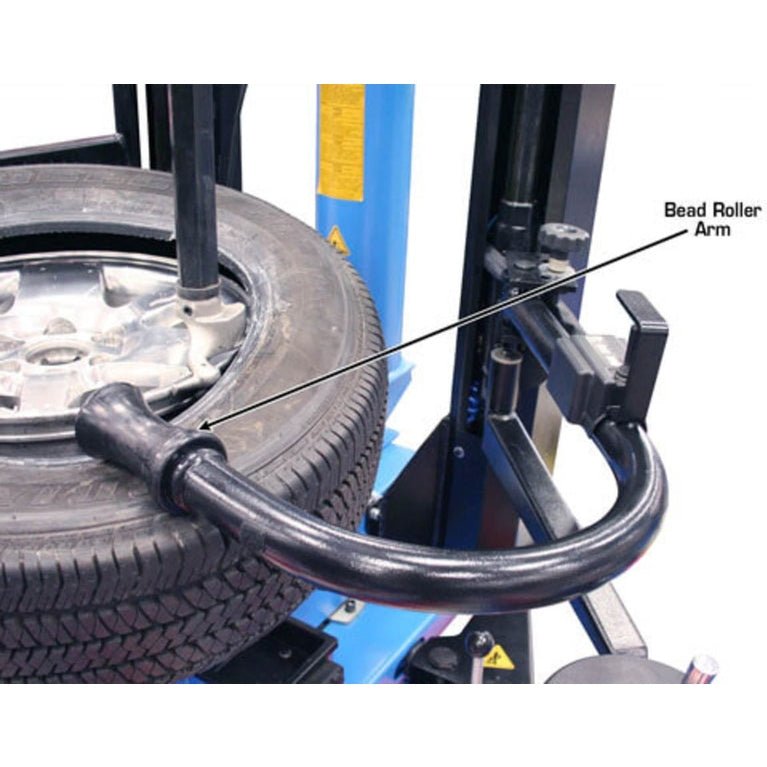

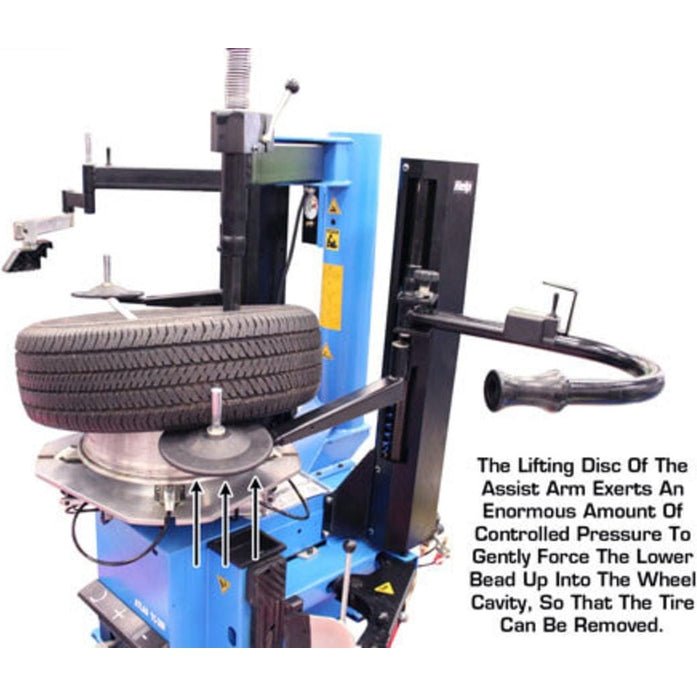

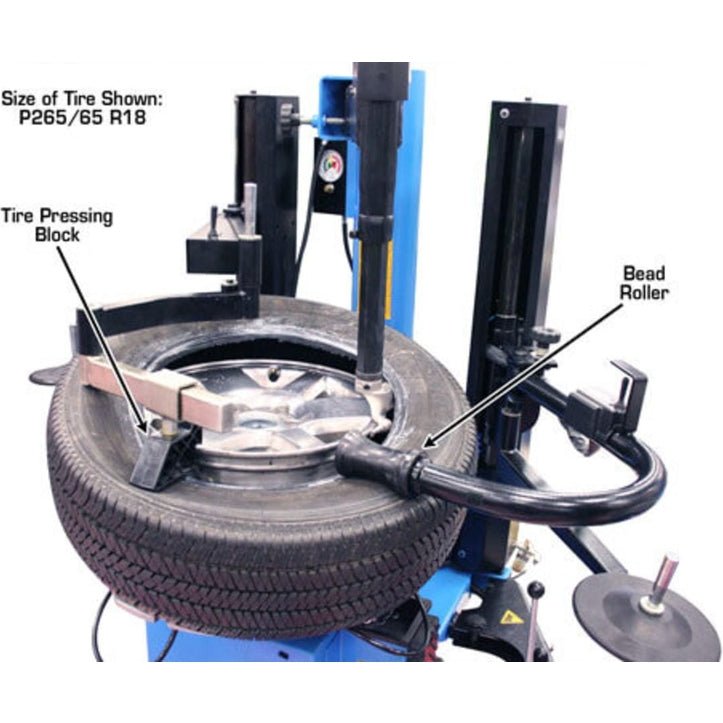

- Left Hand and Right Hand Assist Arms Included
- Extra Large Turntable, More Clearance

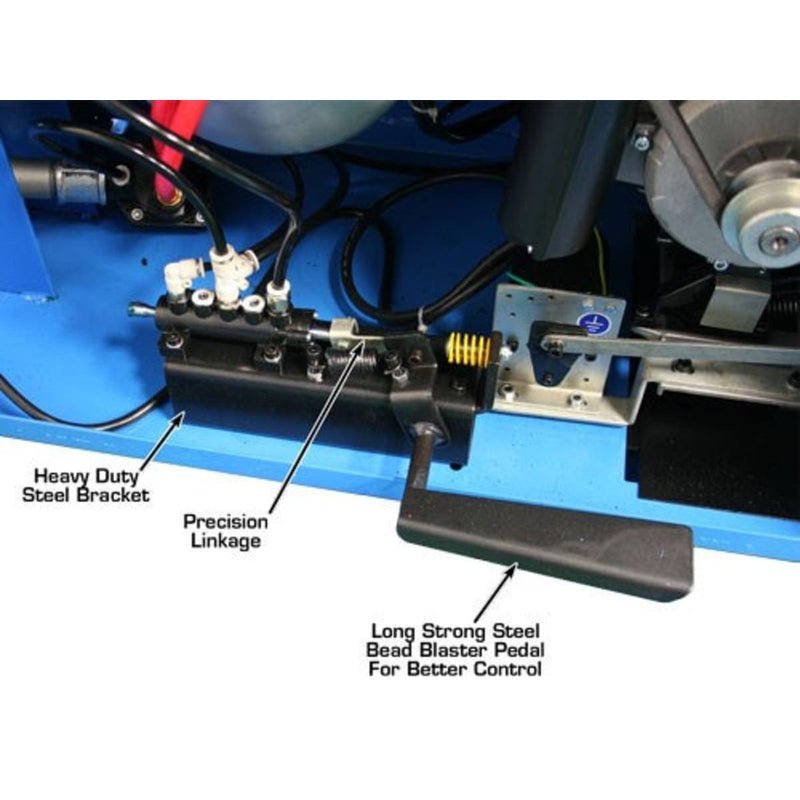

- Built-in “Beadblaster”

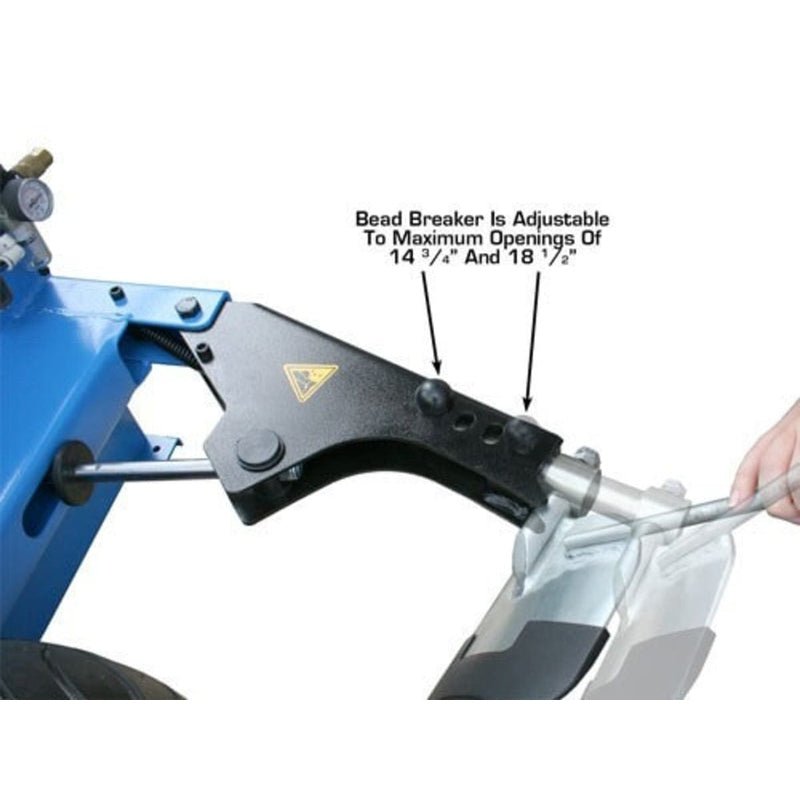

- Adjustable Bead Breaker Plate

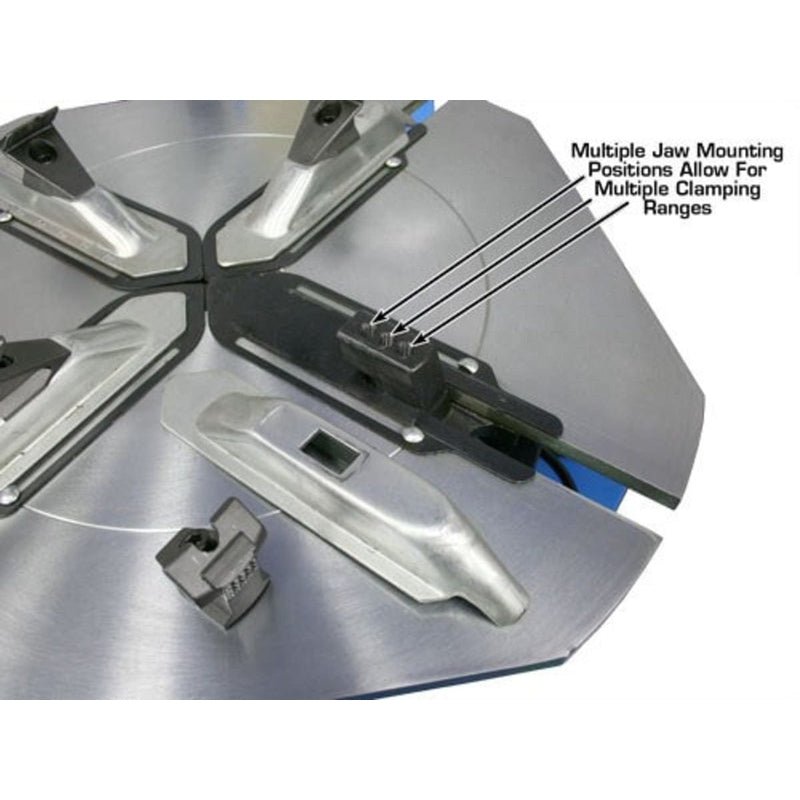

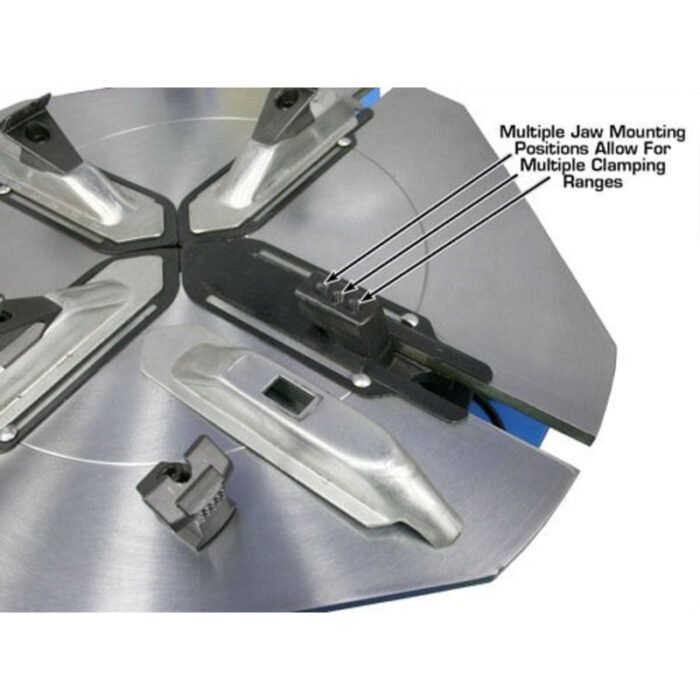

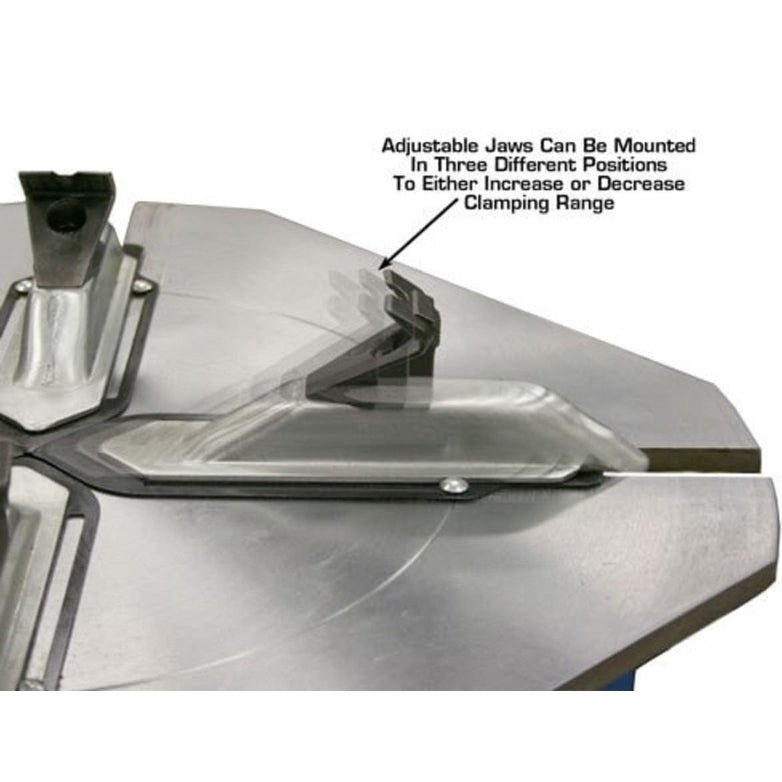

- Adjustable jaws, 3 mounting positions
- Oiler, Filter, Regulator included (external air supply required)

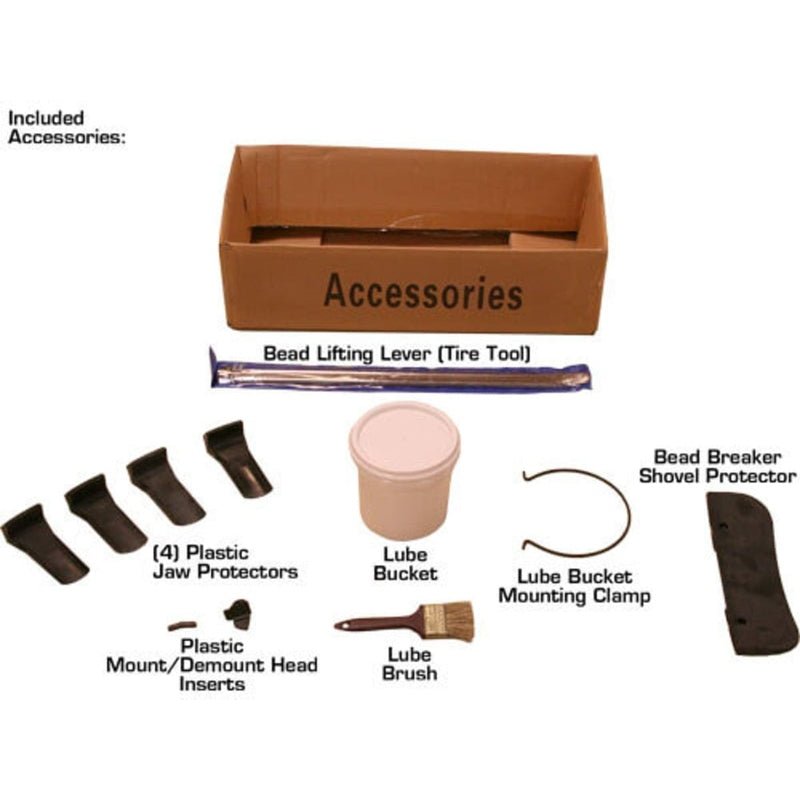

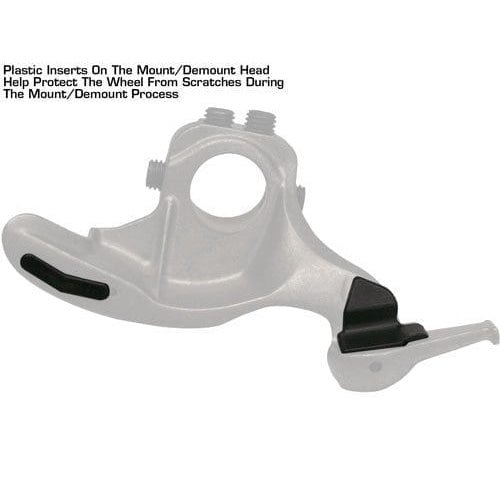

- Plastic Protectors Included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included

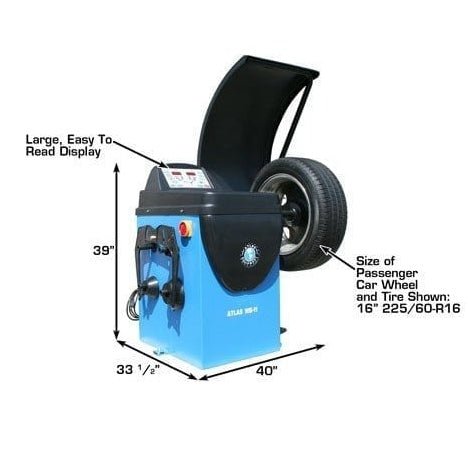

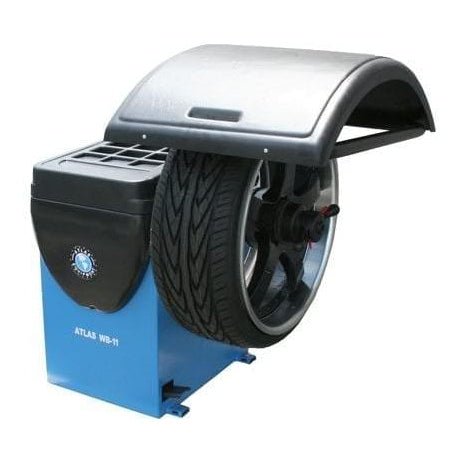

WB11 Wheel Balancer

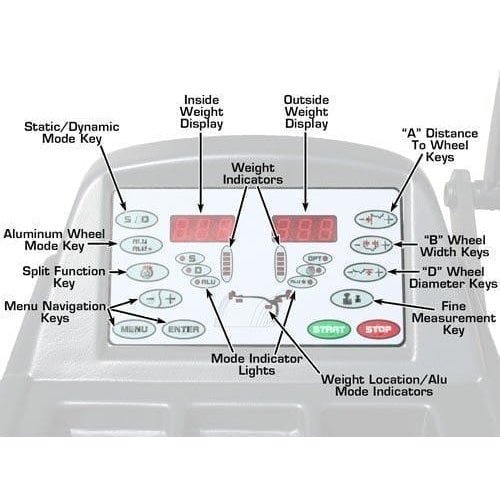

- Computer Controlled Spin Balancer
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self Diagnosis/Self Calibration
- Display in grams or ounces, in mm or inches

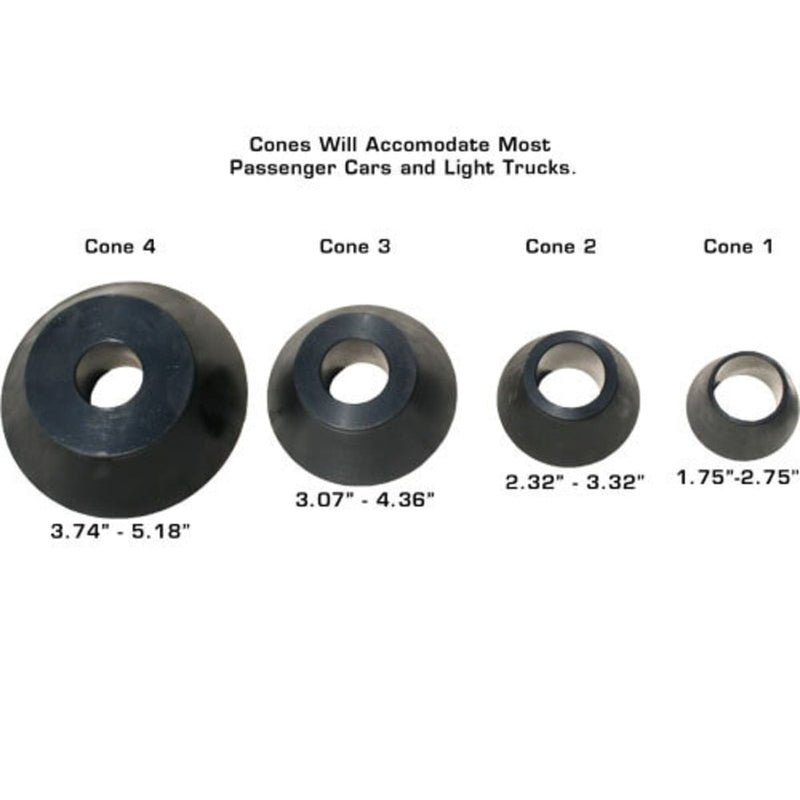

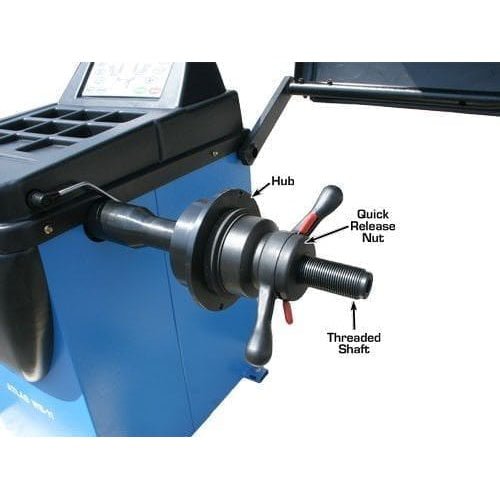

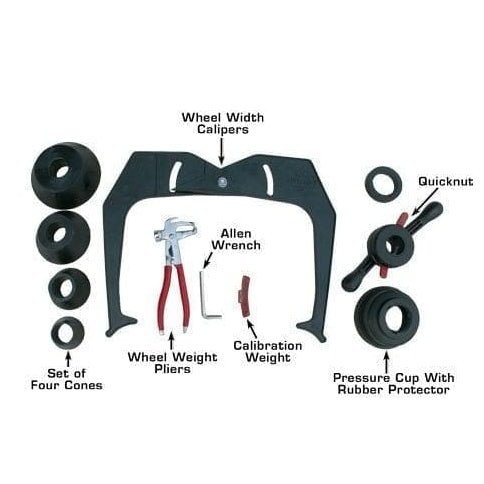

- 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
Specifications
Atlas® TC289 Specifications
| Rims | Steel, Aluminum, Alloy |

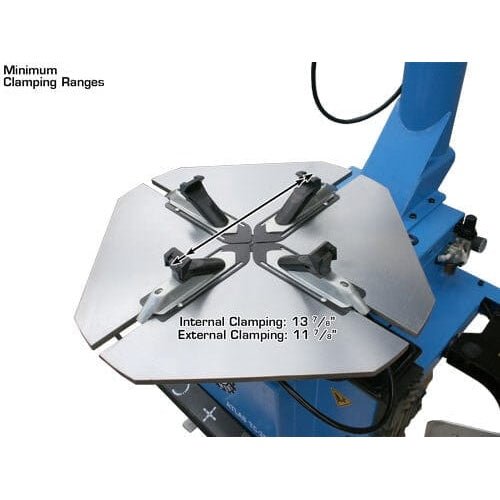

| External Locking Rim Dimension (3 Positions) |
1) 11 7/8″ – 26″ 2) 12 7/8″ – 27″ 3) 13 3/4″ – 28″ |

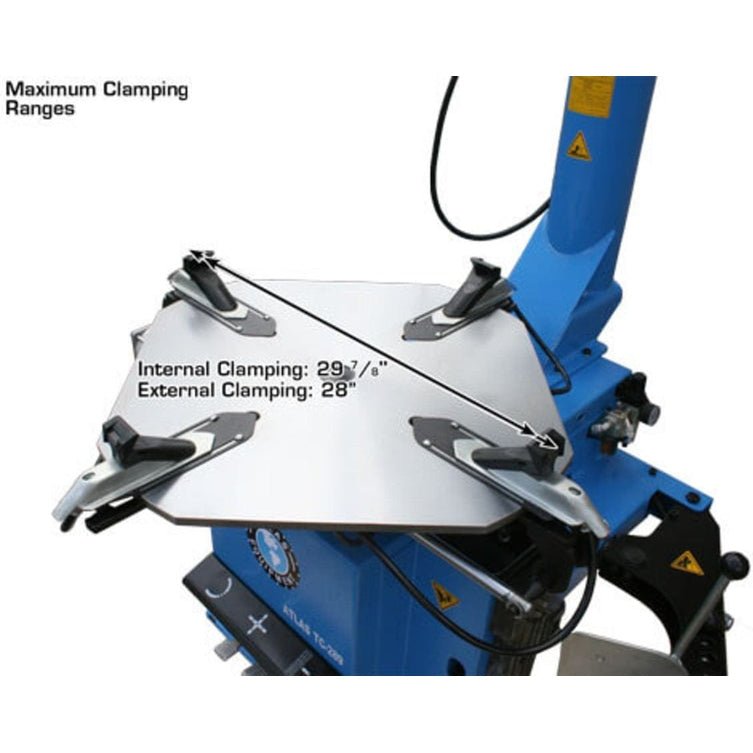

| Internal Locking Rim Dimension (3 Positions) |
1) 13 7/8″ – 27 7/8″ 2) 14 5/8″ – 28 7/8″ 3) 15 5/8″ – 29 7/8″ |
| Maximum Tire Diameter | 47″ |
| Maximum Wheel Width (Bead Breaker) | 18″ |

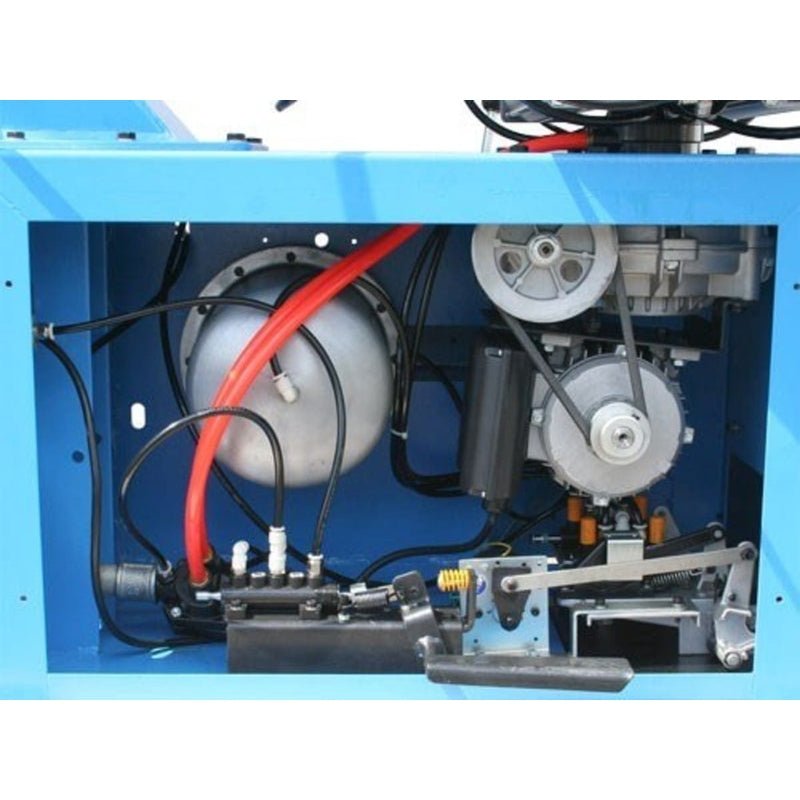

| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110volt |
| Shipping Weight | 620 lbs. |

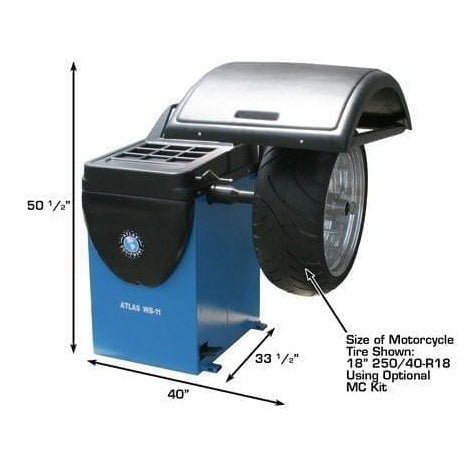

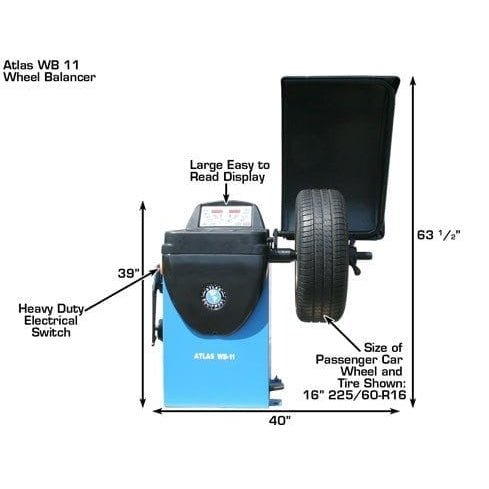

Atlas® WB11 Specifications
| Max Tire Diameter | 39″ (3″ 6′) |
| Rim Sizes (Cars And Light Trucks) | 10″-32″ |
| Rim Width | 1 1/2″-20″ |

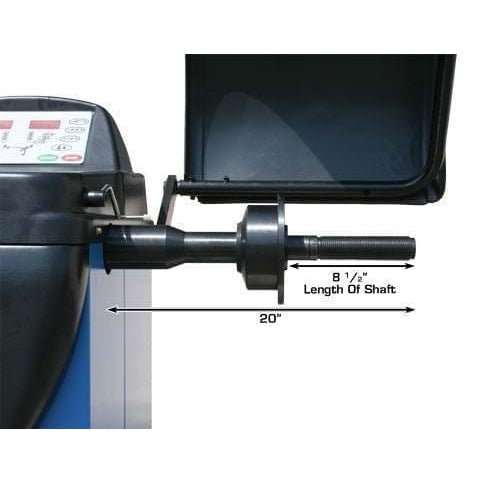

| Shaft Size | 40mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 rpm |
| Data Entry | All Dimensions Manual |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110volt |
| Shipping Weight | 355 lbs. |
